American Whitney
Hand Tools

Formerly W.A. Whitney Hand Tools!










No. 2 Hand Operated Channel Iron Punch


Punches ¼” Dia. Hole Thru ¼” Mild Steel
  • The Other Most powerful punch of its size, featuring unique cam action
  • Lightweight, ideal for overhead work
  • All wearing parts heat-treated
  • The No. 2 Channel Iron Punch is identical to the No. 2 Standard Punch except for its jaw. The special jaw design makes this an Ideal tool for punching the web in channel iron.


This durable, lightweight, powerhouse of a punch will provide years of trouble free service. Unique cam action eliminates undue operator strain. It features gear and cam design for ease of punching holes as large as 1/2” diameter. All main parts are drop-forged steel with wearing parts heat treated.

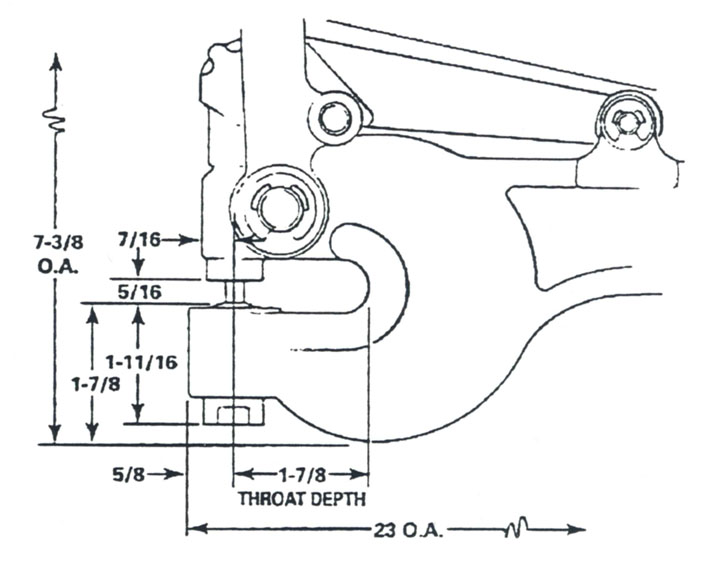

Capacity……………….......….5 ton
Maximum Diameter…….1/2"
(thru 10 gage mild steel)
Maximum Thickness…….. ¼ "
Throat Depth…………...…..1-7/8"
Space between Punch & Die  5/16”
Overall Length……..…….23"
Weight …....17 lbs
